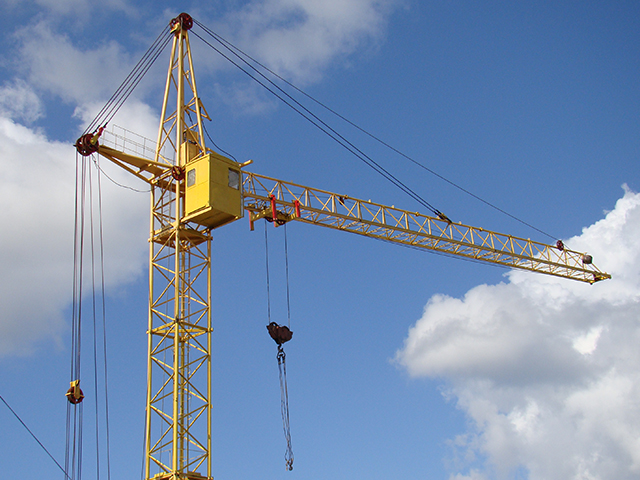

Башенный кран КБ-403

Array
(
    [ORIGINAL_PARAMETERS] => Array
        (
            [IBLOCK_TYPE] => mymap
            [IBLOCK_ID] => 11
            [PROPERTY_CODE] => Array
                (
                    [0] =>
                    [1] =>
                )

            [META_KEYWORDS] => -
            [META_DESCRIPTION] => -
            [BROWSER_TITLE] => -
            [SET_CANONICAL_URL] => N
            [BASKET_URL] => /personal/basket.php
            [ACTION_VARIABLE] => action
            [PRODUCT_ID_VARIABLE] => id
            [SECTION_ID_VARIABLE] => SECTION_ID
            [CHECK_SECTION_ID_VARIABLE] => N
            [PRODUCT_QUANTITY_VARIABLE] => quantity
            [PRODUCT_PROPS_VARIABLE] => prop
            [CACHE_TYPE] => A
            [CACHE_TIME] => 36000000
            [CACHE_GROUPS] => Y
            [SET_TITLE] => Y
            [SET_LAST_MODIFIED] => N
            [MESSAGE_404] =>
            [SET_STATUS_404] => Y
            [SHOW_404] => N
            [FILE_404] =>
            [PRICE_CODE] => Array
                (
                )

            [USE_PRICE_COUNT] => N
            [SHOW_PRICE_COUNT] => 1
            [PRICE_VAT_INCLUDE] => Y
            [PRICE_VAT_SHOW_VALUE] => N
            [USE_PRODUCT_QUANTITY] => N
            [PRODUCT_PROPERTIES] => Array
                (
                )

            [ADD_PROPERTIES_TO_BASKET] => Y
            [PARTIAL_PRODUCT_PROPERTIES] => N
            [LINK_IBLOCK_TYPE] =>
            [LINK_IBLOCK_ID] =>
            [LINK_PROPERTY_SID] =>
            [LINK_ELEMENTS_URL] => link.php?PARENT_ELEMENT_ID=#ELEMENT_ID#
            [OFFERS_CART_PROPERTIES] => Array
                (
                )

            [OFFERS_FIELD_CODE] =>
            [OFFERS_PROPERTY_CODE] => Array
                (
                )

            [OFFERS_SORT_FIELD] =>
            [OFFERS_SORT_ORDER] =>
            [OFFERS_SORT_FIELD2] =>
            [OFFERS_SORT_ORDER2] =>
            [ELEMENT_ID] =>
            [ELEMENT_CODE] => kb-403b
            [SECTION_ID] =>
            [SECTION_CODE] => bashennye-krany
            [SECTION_URL] => /catalog/#SECTION_CODE#/
            [DETAIL_URL] => /catalog/#SECTION_CODE#/#ELEMENT_CODE#/
            [CONVERT_CURRENCY] =>
            [CURRENCY_ID] =>
            [HIDE_NOT_AVAILABLE] =>
            [HIDE_NOT_AVAILABLE_OFFERS] =>
            [USE_ELEMENT_COUNTER] => Y
            [SHOW_DEACTIVATED] => N
            [USE_MAIN_ELEMENT_SECTION] => N
            [STRICT_SECTION_CHECK] => N
            [ADD_PICT_PROP] => -
            [LABEL_PROP] =>
            [LABEL_PROP_MOBILE] =>
            [LABEL_PROP_POSITION] =>
            [OFFER_ADD_PICT_PROP] =>
            [OFFER_TREE_PROPS] => Array
                (
                )

            [PRODUCT_SUBSCRIPTION] =>
            [SHOW_DISCOUNT_PERCENT] =>
            [DISCOUNT_PERCENT_POSITION] =>
            [SHOW_OLD_PRICE] =>
            [SHOW_MAX_QUANTITY] =>
            [MESS_SHOW_MAX_QUANTITY] =>
            [RELATIVE_QUANTITY_FACTOR] =>
            [MESS_RELATIVE_QUANTITY_MANY] =>
            [MESS_RELATIVE_QUANTITY_FEW] =>
            [MESS_BTN_BUY] => Купить
            [MESS_BTN_ADD_TO_BASKET] => В корзину
            [MESS_BTN_SUBSCRIBE] => Подписаться
            [MESS_BTN_DETAIL] => Подробнее
            [MESS_NOT_AVAILABLE] => Нет в наличии
            [MESS_BTN_COMPARE] => Сравнение
            [MESS_PRICE_RANGES_TITLE] =>
            [MESS_DESCRIPTION_TAB] =>
            [MESS_PROPERTIES_TAB] =>
            [MESS_COMMENTS_TAB] =>
            [MAIN_BLOCK_PROPERTY_CODE] =>
            [MAIN_BLOCK_OFFERS_PROPERTY_CODE] =>
            [USE_VOTE_RATING] => N
            [VOTE_DISPLAY_AS_RATING] =>
            [USE_COMMENTS] => N
            [BLOG_USE] =>
            [BLOG_URL] =>
            [BLOG_EMAIL_NOTIFY] =>
            [VK_USE] =>
            [VK_API_ID] => API_ID
            [FB_USE] =>
            [FB_APP_ID] =>
            [BRAND_USE] => N
            [BRAND_PROP_CODE] =>
            [DISPLAY_NAME] => Y
            [IMAGE_RESOLUTION] => 16by9
            [PRODUCT_INFO_BLOCK_ORDER] => sku,props
            [PRODUCT_PAY_BLOCK_ORDER] => rating,price,priceRanges,quantityLimit,quantity,buttons
            [ADD_DETAIL_TO_SLIDER] => N
            [TEMPLATE_THEME] => blue
            [ADD_SECTIONS_CHAIN] => Y
            [ADD_ELEMENT_CHAIN] => Y
            [DISPLAY_PREVIEW_TEXT_MODE] => E
            [DETAIL_PICTURE_MODE] => Array
                (
                    [0] => POPUP
                    [1] => MAGNIFIER
                )

            [ADD_TO_BASKET_ACTION] =>
            [ADD_TO_BASKET_ACTION_PRIMARY] =>
            [SHOW_CLOSE_POPUP] =>
            [DISPLAY_COMPARE] => N
            [COMPARE_PATH] => /catalog/compare.php?action=#ACTION_CODE#
            [USE_COMPARE_LIST] => Y
            [BACKGROUND_IMAGE] => -
            [COMPATIBLE_MODE] => Y
            [DISABLE_INIT_JS_IN_COMPONENT] => N
            [SET_VIEWED_IN_COMPONENT] =>
            [SHOW_SLIDER] => N
            [SLIDER_INTERVAL] =>
            [SLIDER_PROGRESS] =>
            [USE_ENHANCED_ECOMMERCE] => N
            [DATA_LAYER_NAME] =>
            [BRAND_PROPERTY] =>
            [USE_GIFTS_DETAIL] => Y
            [USE_GIFTS_MAIN_PR_SECTION_LIST] => Y
            [GIFTS_SHOW_DISCOUNT_PERCENT] =>
            [GIFTS_SHOW_OLD_PRICE] =>
            [GIFTS_DETAIL_PAGE_ELEMENT_COUNT] => 4
            [GIFTS_DETAIL_HIDE_BLOCK_TITLE] =>
            [GIFTS_DETAIL_TEXT_LABEL_GIFT] =>
            [GIFTS_DETAIL_BLOCK_TITLE] =>
            [GIFTS_SHOW_NAME] =>
            [GIFTS_SHOW_IMAGE] =>
            [GIFTS_MESS_BTN_BUY] =>
            [GIFTS_PRODUCT_BLOCKS_ORDER] => price,props,sku,quantityLimit,quantity,buttons
            [GIFTS_SHOW_SLIDER] => Y
            [GIFTS_SLIDER_INTERVAL] => 3000
            [GIFTS_SLIDER_PROGRESS] => N
            [GIFTS_MAIN_PRODUCT_DETAIL_PAGE_ELEMENT_COUNT] => 4
            [GIFTS_MAIN_PRODUCT_DETAIL_BLOCK_TITLE] =>
            [GIFTS_MAIN_PRODUCT_DETAIL_HIDE_BLOCK_TITLE] =>
            [USER_CONSENT] => N
            [USER_CONSENT_ID] => 0
            [USER_CONSENT_IS_CHECKED] => Y
            [USER_CONSENT_IS_LOADED] => N
            [PRODUCT_DISPLAY_MODE] => Y
            [CURRENT_BASE_PAGE] => /catalog/bashennye-krany/kb-403b/
            [PARENT_NAME] => bitrix:catalog
            [PARENT_TEMPLATE_NAME] => giraffe_catalog
            [PARENT_TEMPLATE_PAGE] => element
        )

    [USE_CATALOG_BUTTONS] => Array
        (
        )

    [BUY_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=BUY&id=#ID#
    [ADD_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=ADD2BASKET&id=#ID#
    [SUBSCRIBE_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=SUBSCRIBE_PRODUCT&id=#ID#
    [COMPARE_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=ADD_TO_COMPARE_LIST&id=#ID#
    [COMPARE_DELETE_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=DELETE_FROM_COMPARE_LIST&id=#ID#
    [~BUY_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=BUY&id=#ID#
    [~ADD_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=ADD2BASKET&id=#ID#
    [~SUBSCRIBE_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=SUBSCRIBE_PRODUCT&id=#ID#
    [~COMPARE_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=ADD_TO_COMPARE_LIST&id=#ID#
    [~COMPARE_DELETE_URL_TEMPLATE] => /catalog/bashennye-krany/kb-403b/?action=DELETE_FROM_COMPARE_LIST&id=#ID#
    [CONVERT_CURRENCY] => Array
        (
        )

    [CATALOGS] => Array
        (
        )

    [MODULES] => Array
        (
            [iblock] => 1
            [catalog] =>
            [currency] =>
            [workflow] =>
        )

    [PRICES_ALLOW] => Array
        (
        )

    [CATALOG] =>
    [CAT_PRICES] => Array
        (
        )

    [PRICES] => Array
        (
        )

    [PRICE_MATRIX] =>
    [MIN_PRICE] =>
    [ID] => 527
    [~ID] => 527
    [IBLOCK_ID] => 11
    [~IBLOCK_ID] => 11
    [CODE] => kb-403b
    [~CODE] => kb-403b
    [XML_ID] => 527
    [~XML_ID] => 527
    [NAME] => Башенный кран КБ-403
    [~NAME] => Башенный кран КБ-403
    [ACTIVE] => Y
    [~ACTIVE] => Y
    [DATE_ACTIVE_FROM] =>
    [~DATE_ACTIVE_FROM] =>
    [DATE_ACTIVE_TO] =>
    [~DATE_ACTIVE_TO] =>
    [SORT] => 150
    [~SORT] => 150
    [PREVIEW_TEXT] =>
    [~PREVIEW_TEXT] =>
    [PREVIEW_TEXT_TYPE] => text
    [~PREVIEW_TEXT_TYPE] => text
    [DETAIL_TEXT] =>
Башенные краны КБ-403 сняты с производства, в связи с чем мы готовы предложить вам более современные и улучшенные модели.

Башенные краны КБ 403, выпускаемые на базе «Нязепетровского краностроительного завода», используются в промышленном и гражданском строительстве для возведения высотных зданий. Всего производством и сборкой КБ 403 в России занимаются три завода (Нязепетровский, Польский и Московском «Строймаш» и Подольском «Стройтехника»).

На сегодняшний день ни одно крупное строительство не проходит без использования данной модели кранов.

Все технические характеристики указаны для климатического исполнения У1, ГОСТ 15150-69, сейсмическая активность района эксплуатации 6 баллов по MSK-64.

Башенный кран КБ 403: особенности и технические характеристики

В зависимости от модификации, конструкция башенного крана КБ 403 позволяет поднимать грузы различной тяжести на высоту 16 или 17 этажей. Удобное устройство крана делает возможной как сборку механизма на объекте, так и на заводе с дальнейшей транспортировкой и установкой с применением автокрана.

Башенный кран КБ обладает рядом эксплуатационных особенностей и технических преимуществ:

Башенный кран КБ 403 обладает возможностью совершать любые манипуляции с подъемом груза на высоту. Это освобождает строительную компанию от необходимости закупать и завозить на объект дополнительную рабочую технику;

Башня крана имеет решетчатое строение, что обеспечивает конструкции дополнительную устойчивость, прочность и надежность при поднятии тяжестей;

Тележка крана движется по всей длине стрелы, как в горизонтальном, так и в вертикальном положении. Это освобождает от необходимости перемещать конструкцию по территории строительной площадки, экономя время и средства, затраченные на возведение здания;

Башенный кран КБ 403 производится из прочных материалов, не склонных к преждевременному ржавлению, разрушению и деформации под воздействием влаги, сырости, перепадов температур и тяжести;

Для эргономичности и удобства эксплуатации, кабина крана оснащается дополнительным оборудованием, обеспечивающим комфорт оператора.

Краны работают по всей территории России, в странах СНГ – Армения, Казахстан, Беларусь, Туркменистан и Таджикистан.

Башенный кран КБ 403 «Giraffe» - это качество, надежность и производительность, проверенные временем и доказанные делом.

[~DETAIL_TEXT] =>
Башенные краны КБ-403 сняты с производства, в связи с чем мы готовы предложить вам более современные и улучшенные модели.

Башенные краны КБ 403, выпускаемые на базе «Нязепетровского краностроительного завода», используются в промышленном и гражданском строительстве для возведения высотных зданий. Всего производством и сборкой КБ 403 в России занимаются три завода (Нязепетровский, Польский и Московском «Строймаш» и Подольском «Стройтехника»).

На сегодняшний день ни одно крупное строительство не проходит без использования данной модели кранов.

Все технические характеристики указаны для климатического исполнения У1, ГОСТ 15150-69, сейсмическая активность района эксплуатации 6 баллов по MSK-64.

Башенный кран КБ 403: особенности и технические характеристики

В зависимости от модификации, конструкция башенного крана КБ 403 позволяет поднимать грузы различной тяжести на высоту 16 или 17 этажей. Удобное устройство крана делает возможной как сборку механизма на объекте, так и на заводе с дальнейшей транспортировкой и установкой с применением автокрана.

Башенный кран КБ обладает рядом эксплуатационных особенностей и технических преимуществ:

Башенный кран КБ 403 обладает возможностью совершать любые манипуляции с подъемом груза на высоту. Это освобождает строительную компанию от необходимости закупать и завозить на объект дополнительную рабочую технику;

Башня крана имеет решетчатое строение, что обеспечивает конструкции дополнительную устойчивость, прочность и надежность при поднятии тяжестей;

Тележка крана движется по всей длине стрелы, как в горизонтальном, так и в вертикальном положении. Это освобождает от необходимости перемещать конструкцию по территории строительной площадки, экономя время и средства, затраченные на возведение здания;

Башенный кран КБ 403 производится из прочных материалов, не склонных к преждевременному ржавлению, разрушению и деформации под воздействием влаги, сырости, перепадов температур и тяжести;

Для эргономичности и удобства эксплуатации, кабина крана оснащается дополнительным оборудованием, обеспечивающим комфорт оператора.

Краны работают по всей территории России, в странах СНГ – Армения, Казахстан, Беларусь, Туркменистан и Таджикистан.

Башенный кран КБ 403 «Giraffe» - это качество, надежность и производительность, проверенные временем и доказанные делом.

[DETAIL_TEXT_TYPE] => html [~DETAIL_TEXT_TYPE] => html [DATE_CREATE] => 12.02.2016 16:35:42 [~DATE_CREATE] => 12.02.2016 16:35:42 [CREATED_BY] => 2 [~CREATED_BY] => 2 [TAGS] => [~TAGS] => [TIMESTAMP_X] => 26.07.2021 11:31:53 [~TIMESTAMP_X] => 26.07.2021 11:31:53 [MODIFIED_BY] => 2 [~MODIFIED_BY] => 2 [IBLOCK_SECTION_ID] => 52 [~IBLOCK_SECTION_ID] => 52 [DETAIL_PAGE_URL] => /catalog/bashennye-krany/kb-403b/ [~DETAIL_PAGE_URL] => /catalog/bashennye-krany/kb-403b/ [DETAIL_PICTURE] => Array ( [ID] => 1067 [TIMESTAMP_X] => Bitrix\Main\Type\DateTime Object ( [value:protected] => DateTime Object ( [date] => 2021-07-26 09:31:53.000000 [timezone_type] => 3 [timezone] => Europe/Moscow ) ) [MODULE_ID] => iblock [HEIGHT] => 480 [WIDTH] => 640 [FILE_SIZE] => 304994 [CONTENT_TYPE] => image/jpeg [SUBDIR] => iblock/ca2 [FILE_NAME] => ca29ac0d81871b866b6562ccae9eccc6.jpg [ORIGINAL_NAME] => kb403.jpg [DESCRIPTION] => [HANDLER_ID] => [EXTERNAL_ID] => 54a8b90303855d77f494f562bb6402d9 [~src] => [SRC] => /upload/iblock/ca2/ca29ac0d81871b866b6562ccae9eccc6.jpg [UNSAFE_SRC] => /upload/iblock/ca2/ca29ac0d81871b866b6562ccae9eccc6.jpg [SAFE_SRC] => /upload/iblock/ca2/ca29ac0d81871b866b6562ccae9eccc6.jpg [ALT] => Башенный кран КБ-403 [TITLE] => Башенный кран КБ-403 ) [~DETAIL_PICTURE] => 1067 [PREVIEW_PICTURE] => Array ( [ID] => 1066 [TIMESTAMP_X] => Bitrix\Main\Type\DateTime Object ( [value:protected] => DateTime Object ( [date] => 2016-02-12 15:13:00.000000 [timezone_type] => 3 [timezone] => Europe/Moscow ) ) [MODULE_ID] => iblock [HEIGHT] => 185 [WIDTH] => 246 [FILE_SIZE] => 17196 [CONTENT_TYPE] => image/jpeg [SUBDIR] => iblock/b15 [FILE_NAME] => b151d119362f79da9f2967bcd000a7b6.jpg [ORIGINAL_NAME] => kb403.jpg [DESCRIPTION] => [HANDLER_ID] => [EXTERNAL_ID] => 39aeb3ad0d4ed5f3403260f512362198 [~src] => [SRC] => /upload/iblock/b15/b151d119362f79da9f2967bcd000a7b6.jpg [UNSAFE_SRC] => /upload/iblock/b15/b151d119362f79da9f2967bcd000a7b6.jpg [SAFE_SRC] => /upload/iblock/b15/b151d119362f79da9f2967bcd000a7b6.jpg [ALT] => Башенный кран КБ-403 [TITLE] => Башенный кран КБ-403 ) [~PREVIEW_PICTURE] => 1066 [LIST_PAGE_URL] => /catalog/ [~LIST_PAGE_URL] => /catalog/ [LANG_DIR] => / [~LANG_DIR] => / [EXTERNAL_ID] => 527 [~EXTERNAL_ID] => 527 [IBLOCK_TYPE_ID] => catalog [~IBLOCK_TYPE_ID] => catalog [IBLOCK_CODE] => catalog [~IBLOCK_CODE] => catalog [IBLOCK_EXTERNAL_ID] => [~IBLOCK_EXTERNAL_ID] => [LID] => s1 [~LID] => s1 [ACTIVE_FROM] => [ACTIVE_TO] => [IPROPERTY_VALUES] => Array ( [ELEMENT_META_TITLE] => Башенный кран КБ 403 купить от производителя с доставкой и монтажом [ELEMENT_META_KEYWORDS] => башенный кран кб 403 [ELEMENT_META_DESCRIPTION] => Закажите башенный кран КБ-403, используемый для возведения высотных зданий. Мы осуществляем продажу, доставку, монтаж и обслуживание по всему СНГ. [SECTION_META_TITLE] => Купить башенный кран | Строительные башенные краны TDK, КБ цена в Москве [SECTION_META_KEYWORDS] => Башенные краны [SECTION_META_DESCRIPTION] => Купить башенные краны от ведущего производителя в СНГ. В наличии и под индивидуальный заказ. Отличные характеристики, доступные цены. Доставка, монтаж, обслуживание. ) [PRODUCT] => Array ( [TYPE] => [AVAILABLE] => ) [PROPERTIES] => Array ( [DETAIL_TEXT_1] => Array ( [ID] => 40 [IBLOCK_ID] => 11 [NAME] => Типы основания [ACTIVE] => Y [SORT] => 100 [CODE] => DETAIL_TEXT_1 [DEFAULT_VALUE] => Array ( [TEXT] => [TYPE] => HTML ) [PROPERTY_TYPE] => S [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => Y [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => HTML [USER_TYPE_SETTINGS] => Array ( [height] => 200 ) [HINT] => [~NAME] => Типы основания [~DEFAULT_VALUE] => Array ( [TEXT] => [TYPE] => HTML ) [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [DETAIL_TEXT_2] => Array ( [ID] => 41 [IBLOCK_ID] => 11 [NAME] => Транспортировка и монтаж [ACTIVE] => Y [SORT] => 200 [CODE] => DETAIL_TEXT_2 [DEFAULT_VALUE] => Array ( [TEXT] => [TYPE] => HTML ) [PROPERTY_TYPE] => S [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => Y [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => HTML [USER_TYPE_SETTINGS] => Array ( [height] => 200 ) [HINT] => [~NAME] => Транспортировка и монтаж [~DEFAULT_VALUE] => Array ( [TEXT] => [TYPE] => HTML ) [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [DETAIL_TEXT_3] => Array ( [ID] => 52 [IBLOCK_ID] => 11 [NAME] => График грузоподъемности [ACTIVE] => Y [SORT] => 300 [CODE] => DETAIL_TEXT_3 [DEFAULT_VALUE] => Array ( [TEXT] => [TYPE] => HTML ) [PROPERTY_TYPE] => S [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => Y [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => HTML [USER_TYPE_SETTINGS] => Array ( [height] => 200 ) [HINT] => [~NAME] => График грузоподъемности [~DEFAULT_VALUE] => Array ( [TEXT] => [TYPE] => HTML ) [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => Array ( [TEXT] => Раздел находится в стадии наполнения... [TYPE] => HTML ) [PROPERTY_VALUE_ID] => 5204 [DESCRIPTION] => [~VALUE] => Array ( [TEXT] => Раздел находится в стадии наполнения... [TYPE] => HTML ) [~DESCRIPTION] => ) [DETAIL_TEXT_4] => Array ( [ID] => 53 [IBLOCK_ID] => 11 [NAME] => Сфера применения [ACTIVE] => Y [SORT] => 400 [CODE] => DETAIL_TEXT_4 [DEFAULT_VALUE] => Array ( [TYPE] => HTML [TEXT] => ) [PROPERTY_TYPE] => S [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => Y [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => HTML [USER_TYPE_SETTINGS] => Array ( [height] => 200 ) [HINT] => [~NAME] => Сфера применения [~DEFAULT_VALUE] => Array ( [TYPE] => HTML [TEXT] => ) [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [DETAIL_TEXT_5] => Array ( [ID] => 129 [IBLOCK_ID] => 11 [NAME] => Грузовысотные характеристики [ACTIVE] => Y [SORT] => 450 [CODE] => DETAIL_TEXT_5 [DEFAULT_VALUE] => Array ( [TEXT] => [TYPE] => HTML ) [PROPERTY_TYPE] => S [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => HTML [USER_TYPE_SETTINGS] => Array ( [height] => 200 ) [HINT] => [~NAME] => Грузовысотные характеристики [~DEFAULT_VALUE] => Array ( [TEXT] => [TYPE] => HTML ) [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_1] => Array ( [ID] => 33 [IBLOCK_ID] => 11 [NAME] => Грузоподъемность, тонн [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_1 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Грузоподъемность, тонн [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => 8 [PROPERTY_VALUE_ID] => 5200 [DESCRIPTION] => [~VALUE] => 8 [~DESCRIPTION] => ) [PROP_2] => Array ( [ID] => 34 [IBLOCK_ID] => 11 [NAME] => Вылет стрелы крана, м [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_2 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Вылет стрелы крана, м [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => 30 [PROPERTY_VALUE_ID] => 5201 [DESCRIPTION] => [~VALUE] => 30 [~DESCRIPTION] => ) [PROP_3] => Array ( [ID] => 35 [IBLOCK_ID] => 11 [NAME] => Грузоподъемность при макс. вылете, т [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_3 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Грузоподъемность при макс. вылете, т [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => 3-3,5 [PROPERTY_VALUE_ID] => 5202 [DESCRIPTION] => [~VALUE] => 3-3,5 [~DESCRIPTION] => ) [PROP_4] => Array ( [ID] => 36 [IBLOCK_ID] => 11 [NAME] => Макс. высота свободного стояния, м [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_4 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Макс. высота свободного стояния, м [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_5] => Array ( [ID] => 37 [IBLOCK_ID] => 11 [NAME] => Высота подъема башенного, м [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_5 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Высота подъема башенного, м [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => 54,7 [PROPERTY_VALUE_ID] => 5203 [DESCRIPTION] => [~VALUE] => 54,7 [~DESCRIPTION] => ) [GALLERY] => Array ( [ID] => 38 [IBLOCK_ID] => 11 [NAME] => Галерея [ACTIVE] => Y [SORT] => 500 [CODE] => GALLERY [DEFAULT_VALUE] => [PROPERTY_TYPE] => F [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => Y [XML_ID] => [FILE_TYPE] => jpg, gif, bmp, png, jpeg [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Галерея [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PARTNERS] => Array ( [ID] => 42 [IBLOCK_ID] => 11 [NAME] => Партнеры [ACTIVE] => Y [SORT] => 500 [CODE] => PARTNERS [DEFAULT_VALUE] => [PROPERTY_TYPE] => E [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => Y [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 6 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Партнеры [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [VIDEO] => Array ( [ID] => 43 [IBLOCK_ID] => 11 [NAME] => Видео - code (v?=code) из youtube [ACTIVE] => Y [SORT] => 500 [CODE] => VIDEO [DEFAULT_VALUE] => [PROPERTY_TYPE] => S [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => Y [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Видео - code (v?=code) из youtube [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_6] => Array ( [ID] => 119 [IBLOCK_ID] => 11 [NAME] => Номинальная мощность, кВт [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_6 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Номинальная мощность, кВт [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [BUKLET] => Array ( [ID] => 130 [IBLOCK_ID] => 11 [NAME] => Буклет [ACTIVE] => Y [SORT] => 500 [CODE] => BUKLET [DEFAULT_VALUE] => [PROPERTY_TYPE] => F [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Буклет [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [CAD] => Array ( [ID] => 143 [IBLOCK_ID] => 11 [NAME] => cad [ACTIVE] => Y [SORT] => 500 [CODE] => CAD [DEFAULT_VALUE] => [PROPERTY_TYPE] => F [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => cad [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [IDEA] => Array ( [ID] => 279 [IBLOCK_ID] => 11 [NAME] => Бизнес-идея [ACTIVE] => Y [SORT] => 500 [CODE] => IDEA [DEFAULT_VALUE] => [PROPERTY_TYPE] => F [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Бизнес-идея [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [LIST] => Array ( [ID] => 280 [IBLOCK_ID] => 11 [NAME] => Опросный лист [ACTIVE] => Y [SORT] => 500 [CODE] => LIST [DEFAULT_VALUE] => [PROPERTY_TYPE] => F [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Опросный лист [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_7] => Array ( [ID] => 281 [IBLOCK_ID] => 11 [NAME] => Макс. грузоподъемность основная, т [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_7 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Макс. грузоподъемность основная, т [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_8] => Array ( [ID] => 282 [IBLOCK_ID] => 11 [NAME] => Макс. грузоподъемность вспомогательная, т [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_8 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Макс. грузоподъемность вспомогательная, т [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_9] => Array ( [ID] => 283 [IBLOCK_ID] => 11 [NAME] => Максимальный пролет, м [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_9 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Максимальный пролет, м [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_10] => Array ( [ID] => 285 [IBLOCK_ID] => 11 [NAME] => Глубина, макс. достигаемая (стрела на 82°), м [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_10 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Глубина, макс. достигаемая (стрела на 82°), м [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_11] => Array ( [ID] => 287 [IBLOCK_ID] => 11 [NAME] => Скорость подъема груза макс, м/мин. (15 т) [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_11 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Скорость подъема груза макс, м/мин. (15 т) [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_12] => Array ( [ID] => 288 [IBLOCK_ID] => 11 [NAME] => Угол вращения [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_12 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Угол вращения [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_13] => Array ( [ID] => 294 [IBLOCK_ID] => 11 [NAME] => Сейсмостойкость базовая [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_13 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Сейсмостойкость базовая [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_14] => Array ( [ID] => 295 [IBLOCK_ID] => 11 [NAME] => Сейсмостойкость по спец.проекту [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_14 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Сейсмостойкость по спец.проекту [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_15] => Array ( [ID] => 305 [IBLOCK_ID] => 11 [NAME] => Срок эксплуатации, лет [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_15 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Срок эксплуатации, лет [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_16] => Array ( [ID] => 306 [IBLOCK_ID] => 11 [NAME] => Срок поставки, дней [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_16 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Срок поставки, дней [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PROP_17] => Array ( [ID] => 307 [IBLOCK_ID] => 11 [NAME] => Время монтажа, дней [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_17 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Время монтажа, дней [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) [PRICE] => Array ( [ID] => 343 [IBLOCK_ID] => 11 [NAME] => Цена, руб. [ACTIVE] => Y [SORT] => 500 [CODE] => PRICE [DEFAULT_VALUE] => [PROPERTY_TYPE] => S [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Цена, руб. [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => [PROPERTY_VALUE_ID] => [DESCRIPTION] => [~DESCRIPTION] => [~VALUE] => ) ) [DISPLAY_PROPERTIES] => Array ( ) [PRODUCT_PROPERTIES] => Array ( ) [PRODUCT_PROPERTIES_FILL] => Array ( ) [OFFERS] => Array ( ) [OFFER_ID_SELECTED] => 0 [ITEM_PRICE_MODE] => [ITEM_PRICES] => Array ( ) [ITEM_QUANTITY_RANGES] => [ITEM_MEASURE_RATIOS] => [ITEM_MEASURE] => Array ( ) [ITEM_MEASURE_RATIO_SELECTED] => [ITEM_QUANTITY_RANGE_SELECTED] => [ITEM_PRICE_SELECTED] => [CAN_BUY] => [EDIT_LINK] => [DELETE_LINK] => [BACKGROUND_IMAGE] => [MORE_PHOTO] => Array ( [0] => Array ( [ID] => 1067 [SRC] => /upload/iblock/ca2/ca29ac0d81871b866b6562ccae9eccc6.jpg [WIDTH] => 640 [HEIGHT] => 480 ) ) [LINKED_ELEMENTS] => Array ( ) [SECTION] => Array ( [ID] => 52 [~ID] => 52 [MODIFIED_BY] => 2 [~MODIFIED_BY] => 2 [CREATED_BY] => 2 [~CREATED_BY] => 2 [IBLOCK_ID] => 11 [~IBLOCK_ID] => 11 [IBLOCK_SECTION_ID] => [~IBLOCK_SECTION_ID] => [ACTIVE] => Y [~ACTIVE] => Y [GLOBAL_ACTIVE] => Y [~GLOBAL_ACTIVE] => Y [SORT] => 100 [~SORT] => 100 [NAME] => Башенные краны [~NAME] => Башенные краны [PICTURE] => 2761 [~PICTURE] => 2761 [LEFT_MARGIN] => 1 [~LEFT_MARGIN] => 1 [RIGHT_MARGIN] => 2 [~RIGHT_MARGIN] => 2 [DEPTH_LEVEL] => 1 [~DEPTH_LEVEL] => 1 [DESCRIPTION] =>

Предназначены для механизации строительно-монтажных работ при возведении жилых, гражданских и промышленных зданий и сооружений повышенной этажности с массой монтируемых элементов до 40 тонн

[~DESCRIPTION] =>

Предназначены для механизации строительно-монтажных работ при возведении жилых, гражданских и промышленных зданий и сооружений повышенной этажности с массой монтируемых элементов до 40 тонн

[DESCRIPTION_TYPE] => html [~DESCRIPTION_TYPE] => html [CODE] => bashennye-krany [~CODE] => bashennye-krany [XML_ID] => [~XML_ID] => [TMP_ID] => [~TMP_ID] => [DETAIL_PICTURE] => 2762 [~DETAIL_PICTURE] => 2762 [SOCNET_GROUP_ID] => [~SOCNET_GROUP_ID] => [LIST_PAGE_URL] => /catalog/ [~LIST_PAGE_URL] => /catalog/ [SECTION_PAGE_URL] => /catalog/bashennye-krany/ [~SECTION_PAGE_URL] => /catalog/bashennye-krany/ [IBLOCK_TYPE_ID] => catalog [~IBLOCK_TYPE_ID] => catalog [IBLOCK_CODE] => catalog [~IBLOCK_CODE] => catalog [IBLOCK_EXTERNAL_ID] => [~IBLOCK_EXTERNAL_ID] => [EXTERNAL_ID] => [~EXTERNAL_ID] => [PATH] => Array ( [0] => Array ( [ID] => 52 [~ID] => 52 [CODE] => bashennye-krany [~CODE] => bashennye-krany [XML_ID] => [~XML_ID] => [EXTERNAL_ID] => [~EXTERNAL_ID] => [IBLOCK_ID] => 11 [~IBLOCK_ID] => 11 [IBLOCK_SECTION_ID] => [~IBLOCK_SECTION_ID] => [SORT] => 100 [~SORT] => 100 [NAME] => Башенные краны [~NAME] => Башенные краны [ACTIVE] => Y [~ACTIVE] => Y [DEPTH_LEVEL] => 1 [~DEPTH_LEVEL] => 1 [SECTION_PAGE_URL] => /catalog/bashennye-krany/ [~SECTION_PAGE_URL] => /catalog/bashennye-krany/ [IBLOCK_TYPE_ID] => catalog [~IBLOCK_TYPE_ID] => catalog [IBLOCK_CODE] => catalog [~IBLOCK_CODE] => catalog [IBLOCK_EXTERNAL_ID] => [~IBLOCK_EXTERNAL_ID] => [GLOBAL_ACTIVE] => Y [~GLOBAL_ACTIVE] => Y [IPROPERTY_VALUES] => Array ( [SECTION_META_TITLE] => Купить башенный кран | Строительные башенные краны TDK, КБ цена в Москве [SECTION_META_KEYWORDS] => Башенные краны [SECTION_META_DESCRIPTION] => Купить башенные краны от ведущего производителя в СНГ. В наличии и под индивидуальный заказ. Отличные характеристики, доступные цены. Доставка, монтаж, обслуживание. ) ) ) ) [~BUY_URL] => /catalog/bashennye-krany/kb-403b/?action=BUY&id=527 [BUY_URL] => /catalog/bashennye-krany/kb-403b/?action=BUY&id=527 [~ADD_URL] => /catalog/bashennye-krany/kb-403b/?action=ADD2BASKET&id=527 [ADD_URL] => /catalog/bashennye-krany/kb-403b/?action=ADD2BASKET&id=527 [~SUBSCRIBE_URL] => /catalog/bashennye-krany/kb-403b/?action=SUBSCRIBE_PRODUCT&id=527 [SUBSCRIBE_URL] => /catalog/bashennye-krany/kb-403b/?action=SUBSCRIBE_PRODUCT&id=527 [CATALOG_MEASURE_NAME] => [~CATALOG_MEASURE_NAME] => [CATALOG_MEASURE_RATIO] => [META_TAGS] => Array ( [TITLE] => Башенный кран КБ-403 [ELEMENT_CHAIN] => Башенный кран КБ-403 [BROWSER_TITLE] => Башенный кран КБ 403 купить от производителя с доставкой и монтажом [KEYWORDS] => башенный кран кб 403 [DESCRIPTION] => Закажите башенный кран КБ-403, используемый для возведения высотных зданий. Мы осуществляем продажу, доставку, монтаж и обслуживание по всему СНГ. ) [DEFAULT_PICTURE] => [SKU_PROPS] => Array ( ) [CURRENCIES] => Array ( ) [CATALOG_QUANTITY] => 0 [CATALOG_SUBSCRIPTION] => N [LABEL] => [LABEL_VALUE] => [LABEL_ARRAY_VALUE] => Array ( ) [SHOW_SLIDER] => 1 [MORE_PHOTO_COUNT] => 1 [CATALOG_TYPE] => 0 [SLIDES] => Array ( [0] => Array ( [src] => /upload/iblock/ca2/ca29ac0d81871b866b6562ccae9eccc6.jpg [thumb] => /upload/resize_cache/iblock/ca2/110_80_1/ca29ac0d81871b866b6562ccae9eccc6.jpg ) ) [PROPERTY_LIST] => Array ( [PROP_1] => Array ( [ID] => 33 [IBLOCK_ID] => 11 [NAME] => Грузоподъемность, тонн [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_1 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Грузоподъемность, тонн [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => 8 [PROPERTY_VALUE_ID] => 5200 [DESCRIPTION] => [~VALUE] => 8 [~DESCRIPTION] => ) [PROP_2] => Array ( [ID] => 34 [IBLOCK_ID] => 11 [NAME] => Вылет стрелы крана, м [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_2 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Вылет стрелы крана, м [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => 30 [PROPERTY_VALUE_ID] => 5201 [DESCRIPTION] => [~VALUE] => 30 [~DESCRIPTION] => ) [PROP_3] => Array ( [ID] => 35 [IBLOCK_ID] => 11 [NAME] => Грузоподъемность при макс. вылете, т [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_3 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Грузоподъемность при макс. вылете, т [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => 3-3,5 [PROPERTY_VALUE_ID] => 5202 [DESCRIPTION] => [~VALUE] => 3-3,5 [~DESCRIPTION] => ) [PROP_5] => Array ( [ID] => 37 [IBLOCK_ID] => 11 [NAME] => Высота подъема башенного, м [ACTIVE] => Y [SORT] => 500 [CODE] => PROP_5 [DEFAULT_VALUE] => [PROPERTY_TYPE] => N [ROW_COUNT] => 1 [COL_COUNT] => 30 [LIST_TYPE] => L [MULTIPLE] => N [XML_ID] => [FILE_TYPE] => [MULTIPLE_CNT] => 5 [LINK_IBLOCK_ID] => 0 [WITH_DESCRIPTION] => N [SEARCHABLE] => N [FILTRABLE] => N [IS_REQUIRED] => N [VERSION] => 1 [USER_TYPE] => [USER_TYPE_SETTINGS] => [HINT] => [~NAME] => Высота подъема башенного, м [~DEFAULT_VALUE] => [VALUE_ENUM] => [VALUE_XML_ID] => [VALUE_SORT] => [VALUE] => 54,7 [PROPERTY_VALUE_ID] => 5203 [DESCRIPTION] => [~VALUE] => 54,7 [~DESCRIPTION] => ) ) [VARIANTS_TABLE] => Array ( [0] => Array ( [TYPE] => SEPARATOR [COLS] => Array ( [0] => Array ( [NAME] => [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [1] => Array ( [TYPE] => ROW [COLS] => Array ( [0] => Array ( [NAME] => Вариант [TYPE] => HEADER [COLSPAN] => 1 ) [1] => Array ( [NAME] => 0 [TYPE] => HEADER [OPTION] => Array ( ) [COLSPAN] => 2 ) [2] => Array ( [NAME] => 1 [TYPE] => HEADER [OPTION] => Array ( ) [COLSPAN] => 2 ) [3] => Array ( [NAME] => 2 [TYPE] => HEADER [OPTION] => Array ( ) [COLSPAN] => 2 ) [4] => Array ( [NAME] => 3 [TYPE] => HEADER [OPTION] => Array ( ) [COLSPAN] => 2 ) [5] => Array ( [NAME] => [TYPE] => HEADER [OPTION] => Array ( ) [COLSPAN] => 2 ) ) ) [2] => Array ( [TYPE] => SEPARATOR [COLS] => Array ( [0] => Array ( [NAME] => [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [3] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Кратность запасовки каната грузового [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 2 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [4] => Array ( [TYPE] => SECTION [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Грузоподъемность, т [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [5] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Максимальная [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 8 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [6] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => При максимальном вылете [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 3 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [7] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => При максимальном вылете (при наклонной стреле) [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 3,7 [TYPE] => ITEM [COLSPAN] => 4 ) [11] => Array ( [NAME] => 4,3 [TYPE] => ITEM [COLSPAN] => 4 ) [12] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [8] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Максимальный грузовой момент, тм [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 120 [TYPE] => ITEM [COLSPAN] => 4 ) [11] => Array ( [NAME] => 132 [TYPE] => ITEM [COLSPAN] => 4 ) [12] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [9] => Array ( [TYPE] => SECTION [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Вылет стрелы, м [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [10] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Максимальный [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 30 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [11] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Минимальный [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 5,6 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [12] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => При максимальной грузоподъемности [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 15 [TYPE] => ITEM [COLSPAN] => 4 ) [11] => Array ( [NAME] => 16,5 [TYPE] => ITEM [COLSPAN] => 4 ) [12] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [13] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => При наклоне стрелы 30° [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 26,3 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [14] => Array ( [TYPE] => SECTION [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Масса конструктивная, т [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [19] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Установка на рельсовый крановый путь (без балласта), т [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 50,5 [TYPE] => ITEM [COLSPAN] => 2 ) [11] => Array ( [NAME] => 49,2 [TYPE] => ITEM [COLSPAN] => 2 ) [12] => Array ( [NAME] => 47,9 [TYPE] => ITEM [COLSPAN] => 2 ) [13] => Array ( [NAME] => 46,6 [TYPE] => ITEM [COLSPAN] => 2 ) [14] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [21] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Масса плит балласта (для исполнения на секции башни опорной или на рельсах) т [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 30 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [23] => Array ( [TYPE] => SECTION [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Режим работы [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [25] => Array ( [TYPE] => SECTION [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Высота подъема, м [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [26] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Высота свободностоящего крана, м [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 54,7 [TYPE] => ITEM [COLSPAN] => 2 ) [11] => Array ( [NAME] => 49,1 [TYPE] => ITEM [COLSPAN] => 2 ) [12] => Array ( [NAME] => 43,5 [TYPE] => ITEM [COLSPAN] => 2 ) [13] => Array ( [NAME] => 37,9 [TYPE] => ITEM [COLSPAN] => 2 ) [14] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [34] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => С установкой на рельсовом ходу [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 41 [TYPE] => ITEM [COLSPAN] => 2 ) [11] => Array ( [NAME] => 35,4 [TYPE] => ITEM [COLSPAN] => 2 ) [12] => Array ( [NAME] => 29,8 [TYPE] => ITEM [COLSPAN] => 2 ) [13] => Array ( [NAME] => 24,2 [TYPE] => ITEM [COLSPAN] => 2 ) [14] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [35] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Колея х база [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 6х6 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [36] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Задний габарит, м [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 3,8 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [37] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Угол поворота, градусы [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 1080 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [38] => Array ( [TYPE] => SECTION [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Скорость подъема/опускания, м/мин [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [39] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => При двукратной запасовке каната [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 40 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [41] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => При двукратной запасовке и весе груза 1/2 от номин. грузоподъёмности [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 55 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [43] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Максимальная (холостой крюковой подвески) [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 55 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [44] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Скорость плавной посадки, м/мин [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 5 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [45] => Array ( [TYPE] => SECTION [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Скорость передвижения тележки грузовой, м/мин [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [46] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => При номинальной грузоподъёмности [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 30 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [48] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Скорость передвижения крана, м/мин [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 18 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [49] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Частота вращения крана, об./мин [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 0,68 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [50] => Array ( [TYPE] => SECTION [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Мощность, кВт [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [52] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Грузовой лебёдки вспомогательной [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 30/1,6 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [53] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Грузовой лебёдки (основной) [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 55 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [54] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Тележечной лебёдки [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 5 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [55] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Механизма поворота [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 5 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [56] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Механизма передвижения крана (ПВ-100%) [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 2 х 5,5 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [57] => Array ( [TYPE] => SECTION [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Система [TYPE] => ITEM [COLSPAN] => 11 ) ) ) [58] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Управления [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => по заказу [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [59] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Крана [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => А4 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [60] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Механизмов [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => грузовая лебёдка - М5; лебёдка тележки грузовой - М5, лебедка стреловая - М3, поворота - М5, передвижения крана - М5 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [62] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Климатическое исполнение [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => У1 (ТУ1) [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [63] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Температура работающего крана [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => -40+40С [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [65] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Взрывоопасность [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => Взрывобезопасная [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [66] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Пожароопасность [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => Пожаробезопасная [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [67] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Ветровой район (без крепления к зданию) [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => III [TYPE] => ITEM [COLSPAN] => 2 ) [11] => Array ( [NAME] => V [TYPE] => ITEM [COLSPAN] => 2 ) [12] => Array ( [NAME] => VI [TYPE] => ITEM [COLSPAN] => 2 ) [13] => Array ( [NAME] => VII [TYPE] => ITEM [COLSPAN] => 2 ) [14] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [69] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Характеристики питания (напряжение, кВт) [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 380 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [70] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Расчётная нагрузка ходового колеса на рельс, кН [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 270 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [71] => Array ( [TYPE] => ROW [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Суммарная мощность электродвигателей для рельвого крана, кВт [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 121 [TYPE] => ITEM [COLSPAN] => 8 ) [11] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [72] => Array ( [TYPE] => ROW [PARITY] => EVEN [COLS] => Array ( [0] => Array ( [NAME] => Максимальная высота подъема при наклонной стреле до, м [TYPE] => ITEM [COLSPAN] => 1 ) [10] => Array ( [NAME] => 54,7 [TYPE] => ITEM [COLSPAN] => 2 ) [11] => Array ( [NAME] => 49,1 [TYPE] => ITEM [COLSPAN] => 2 ) [12] => Array ( [NAME] => 43,5 [TYPE] => ITEM [COLSPAN] => 2 ) [13] => Array ( [NAME] => 37,9 [TYPE] => ITEM [COLSPAN] => 2 ) [14] => Array ( [NAME] => - [TYPE] => ITEM [COLSPAN] => 2 ) ) ) [73] => Array ( [TYPE] => SECTION [PARITY] => ODD [COLS] => Array ( [0] => Array ( [NAME] => Режим работы [TYPE] => ITEM [COLSPAN] => 11 ) ) ) ) [TABS] => Array ( [График грузоподъемности] => Раздел находится в стадии наполнения... [Варианты исполнения] =>
Вариант 0 1 2 3
Кратность запасовки каната грузового 2 -
Грузоподъемность, т
Максимальная 8 -
При максимальном вылете 3 -
При максимальном вылете (при наклонной стреле) 3,7 4,3 -
Максимальный грузовой момент, тм 120 132 -
Вылет стрелы, м
Максимальный 30 -
Минимальный 5,6 -
При максимальной грузоподъемности 15 16,5 -
При наклоне стрелы 30° 26,3 -
Масса конструктивная, т
Установка на рельсовый крановый путь (без балласта), т 50,5 49,2 47,9 46,6 -
Масса плит балласта (для исполнения на секции башни опорной или на рельсах) т 30 -
Режим работы
Высота подъема, м
Высота свободностоящего крана, м 54,7 49,1 43,5 37,9 -
С установкой на рельсовом ходу 41 35,4 29,8 24,2 -
Колея х база 6х6 -
Задний габарит, м 3,8 -
Угол поворота, градусы 1080 -
Скорость подъема/опускания, м/мин
При двукратной запасовке каната 40 -
При двукратной запасовке и весе груза 1/2 от номин. грузоподъёмности 55 -
Максимальная (холостой крюковой подвески) 55 -
Скорость плавной посадки, м/мин 5 -
Скорость передвижения тележки грузовой, м/мин
При номинальной грузоподъёмности 30 -
Скорость передвижения крана, м/мин 18 -
Частота вращения крана, об./мин 0,68 -
Мощность, кВт
Грузовой лебёдки вспомогательной 30/1,6 -
Грузовой лебёдки (основной) 55 -
Тележечной лебёдки 5 -
Механизма поворота 5 -
Механизма передвижения крана (ПВ-100%) 2 х 5,5 -
Система
Управления по заказу -
Крана А4 -
Механизмов грузовая лебёдка - М5; лебёдка тележки грузовой - М5, лебедка стреловая - М3, поворота - М5, передвижения крана - М5 -
Климатическое исполнение У1 (ТУ1) -
Температура работающего крана -40+40С -
Взрывоопасность Взрывобезопасная -
Пожароопасность Пожаробезопасная -
Ветровой район (без крепления к зданию) III V VI VII -
Характеристики питания (напряжение, кВт) 380 -
Расчётная нагрузка ходового колеса на рельс, кН 270 -
Суммарная мощность электродвигателей для рельвого крана, кВт 121 -
Максимальная высота подъема при наклонной стреле до, м 54,7 49,1 43,5 37,9 -
Режим работы
) )

Технические характеристики

Грузоподъемность, тонн 8
Вылет стрелы крана, м 30
Грузоподъемность при макс. вылете, т 3-3,5
Высота подъема башенного, м 54,7

Описание

Башенные краны КБ-403 сняты с производства, в связи с чем мы готовы предложить вам более современные и улучшенные модели. Башенные краны КБ 403, выпускаемые на базе «Нязепетровского краностроительного завода», используются в промышленном и гражданском строительстве для возведения высотных зданий. Всего производством и сборкой КБ 403 в России занимаются три завода (Нязепетровский, Польский и Моско...

Подробное описание

График грузоподъемности
Варианты исполнения

График грузоподъемности

Раздел находится в стадии наполнения...

Варианты исполнения

Вариант 0 1 2 3
Кратность запасовки каната грузового 2 -
Грузоподъемность, т
Максимальная 8 -
При максимальном вылете 3 -
При максимальном вылете (при наклонной стреле) 3,7 4,3 -
Максимальный грузовой момент, тм 120 132 -
Вылет стрелы, м
Максимальный 30 -
Минимальный 5,6 -
При максимальной грузоподъемности 15 16,5 -
При наклоне стрелы 30° 26,3 -
Масса конструктивная, т
Установка на рельсовый крановый путь (без балласта), т 50,5 49,2 47,9 46,6 -
Масса плит балласта (для исполнения на секции башни опорной или на рельсах) т 30 -
Режим работы
Высота подъема, м
Высота свободностоящего крана, м 54,7 49,1 43,5 37,9 -
С установкой на рельсовом ходу 41 35,4 29,8 24,2 -
Колея х база 6х6 -
Задний габарит, м 3,8 -
Угол поворота, градусы 1080 -
Скорость подъема/опускания, м/мин
При двукратной запасовке каната 40 -
При двукратной запасовке и весе груза 1/2 от номин. грузоподъёмности 55 -
Максимальная (холостой крюковой подвески) 55 -
Скорость плавной посадки, м/мин 5 -
Скорость передвижения тележки грузовой, м/мин
При номинальной грузоподъёмности 30 -
Скорость передвижения крана, м/мин 18 -
Частота вращения крана, об./мин 0,68 -
Мощность, кВт
Грузовой лебёдки вспомогательной 30/1,6 -
Грузовой лебёдки (основной) 55 -
Тележечной лебёдки 5 -
Механизма поворота 5 -
Механизма передвижения крана (ПВ-100%) 2 х 5,5 -
Система
Управления по заказу -
Крана А4 -
Механизмов грузовая лебёдка - М5; лебёдка тележки грузовой - М5, лебедка стреловая - М3, поворота - М5, передвижения крана - М5 -
Климатическое исполнение У1 (ТУ1) -
Температура работающего крана -40+40С -
Взрывоопасность Взрывобезопасная -
Пожароопасность Пожаробезопасная -
Ветровой район (без крепления к зданию) III V VI VII -
Характеристики питания (напряжение, кВт) 380 -
Расчётная нагрузка ходового колеса на рельс, кН 270 -
Суммарная мощность электродвигателей для рельвого крана, кВт 121 -
Максимальная высота подъема при наклонной стреле до, м 54,7 49,1 43,5 37,9 -
Режим работы

Наши объекты

Надежная работа в экстремально низких температурах

Строим объекты Универсиады-2013

Строительстве первого в городе 23-этажного дома

Строим двадцатиэтажные высотки

23-этажные дома "Виктория"

Развиваем Московский Метрополитен

Строительство элитного жилого комплекса Бриг

Строительство футбольного стадиона на 45 000 мест к ЧМ-2018

Строим ЖК Родник

Построили ЖК Пять звезд, ЖК Олимпийский, Челюскинцев 101 и многие другие

Строим самое высокое здание в Чите

Строительство жилого дома на улице Интернациональная

Реконструкция Центрального стадиона

Строительство плавательного бассейна

Строительство высотных 25-этажных домов

Строительство жилых комплексов Академ-RIVERSIDE и Парковый
